- Place of Origin:CN;SHG
- Brand Name:Shanghai SMB
- Model Number:031072
- concrete mixer bucket:concrete mixer bucket
- concrete mixer bucket model no.:031072
- concrete mixer bucket steel material:NM360
- concrete mixer bucket overall dimension:1172*1813*1135 mm
- concrete mixer bucket unit weight:600 kg
- concrete mixer bucket capacity:0.75 cbm
- concrete mixer bucket max. load:1500 kg
- concrete mixer bucket hydraulic flow:70-90 L/min
- concrete mixer bucket system pressure:25 Mpa
- concrete mixer bucket origin:made in China

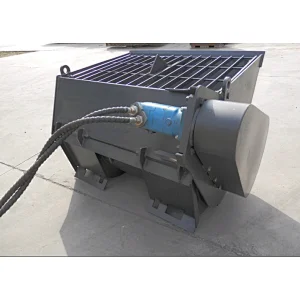

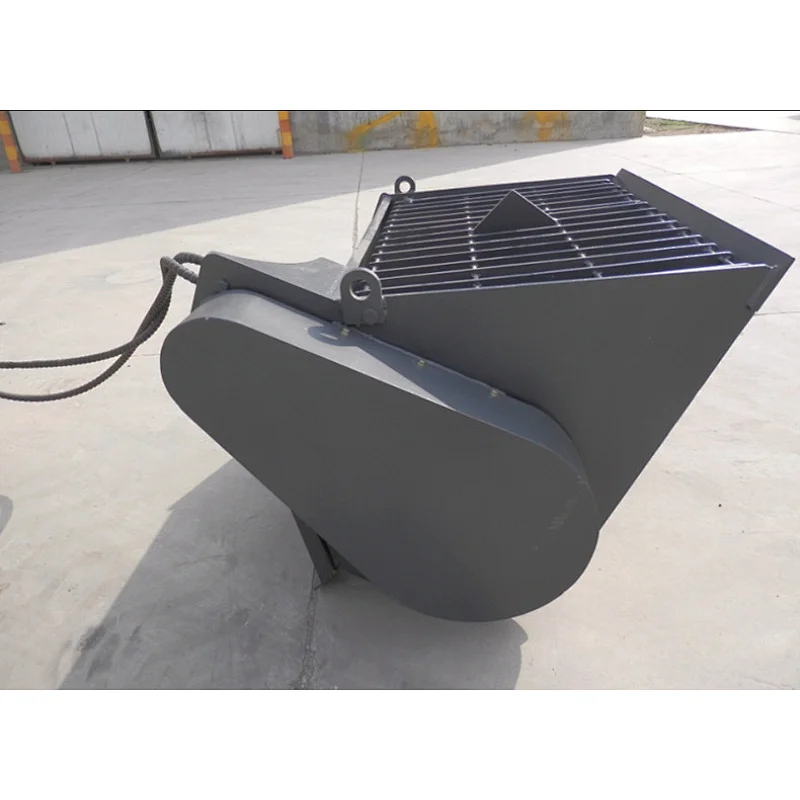

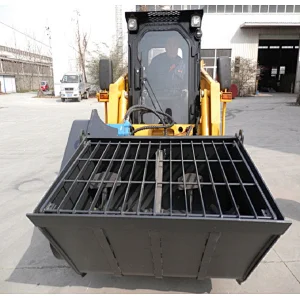

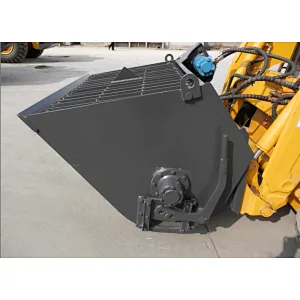

utility hydraulic concrete mixer bucket for mini skid loader
1. Model no.: 031072
2. Suitable for: perfected equipped with small loader
3.Features:

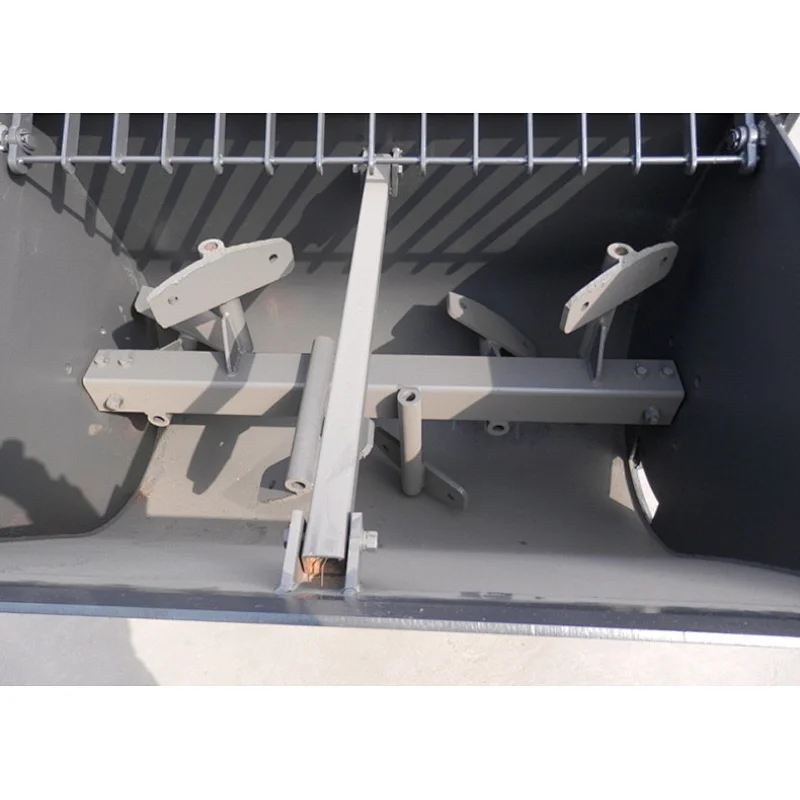

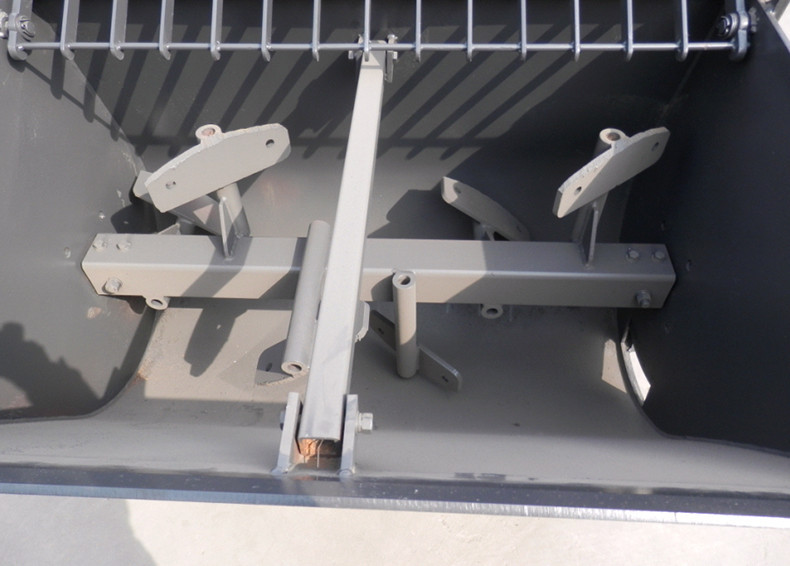

1) All welded steel drum construction with internal paddles for uniform mixing and clean dumping.
2) Compact, trouble free, long life design with few moving parts
3) Hydraulic motor drivers for easy operation and low maintenance
4) Parking stands for easy storage
5) Bronze Oilite bearing provide long bearing life
4.Our main markets are Ecuador, America, Panama, Russia, Australia, New-Zealand, Thailand, Singapore etc
5. utility hydraulic concrete mixer bucket for mini skid loader made in China
Model no. | 031060 | 031072 |
Overall dimension(L*W*H)(mm) | 1220*1513*1010mm | 1172*1813*1135mm |
Weight (kg) | 500 | 600 |
Bucket capacity (m3) | 0.55 | 0.75 |
Max load (kg) | 1000 | 1500 |
Hydraulic flow (L/min) | 65-90 | 70-90 |
System pressure (Mpa) | 25 | 25 |
1. standard packing for concrete mixer bucket;
2. customized packing for concrete mixer bucket.
