- Place of Origin:CN;SHG
- Warranty:1 YEAR
- After-sales Service Provided:Online support
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Retail
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Brand Name:Shanghai SMB Bucket
- Model Number:SMB CB100
- Weight:1400 kgs
- Suitable Excavator(ton):10-15
- Name:SMB CB100 new clamshell bucket
- new crusher bucket Suit for:10-15t excavator
- new crusher bucket material:Hardox steel plate
- new crusher bucket unit weight:about 1400kgs
- new crusher bucket hold capacity:0.35m3
- new crusher bucket Pressure (Mpa):24.5
- new crusher bucket oil flow (L/min):90
- new crusher bucket Feeding size(mm):550*450
- new crusher bucket Adjustment size(mm):1820*1080*1200
- standard bucket origin:made in China

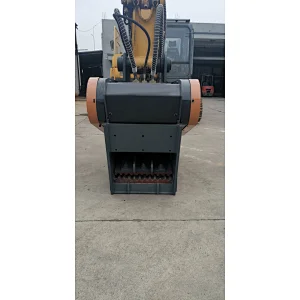

Shanghai SMB using flexible bucket stone crusher for 10-15 ton excavator on sale
1. Model:CB100
2. Suit for 10-15t excavator
3. material: Hardox steel plate
4. unit weight:about 1400kgs
5. hold capacity:about 0.35m3
6.Characteristics.:
By reversing the rotation, clogged materials can be easily released. The upper and lower jam plates can be exchanged with each other, and the rear and front sections can also be exchanged. We are using direct drive system which makes maintenance much easier. The reinforcing bars can be easily remove from crushed reinforcement and this product requires drain line.
Model | CB100 | CB200 | CB300 | CB400 |
Suitable excavator ton | 10≈15 | 20≈25 | 30≈35 | 40≈50 |
Bucket Volume (m3) | 0.35 | 0.65 | 0.75 | 1.15 |
Pressure (Mpa) | 24.5 | 24.5 | 24.5 | 24.5 |
oil flow (L/min) | 90 | 150 | 230 | 260 |
Feeding size(mm) | 550*450 | 700*500 | 900*500 | 1100*500 |
Adjustment size(mm) | 1820*1080*1200 | 2246*1380*1440 | 2367*1665*1575 | 2642*2010*1640 |
weight (kg) | 1400 | 2500 | 3800 | 5200 |
1.standard package for crusher bucket
2.customized package for crusher bucket
