- Place of Origin:CN;SHG
- Warranty:1 YEAR
- After-sales Service Provided:Online support
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Retail
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Brand Name:Shanghai SMB Bucket
- Model Number:SMB CB300
- Weight:3800 kgs
- Suitable Excavator(ton):30-35
- Name:SMB CB300 new clamshell bucket
- new crusher bucket Suit for:30-35t excavator
- new crusher bucket material:Hardox steel plate
- new crusher bucket unit weight:about 3800kgs
- new crusher bucket hold capacity:0.75m3
- new crusher bucket Pressure (Mpa):24.5
- new crusher bucket oil flow (L/min):230
- new crusher bucket Feeding size(mm):900*500
- new crusher bucket Adjustment size(mm):2367*1665*1575
- new crusher bucket origin:made in China

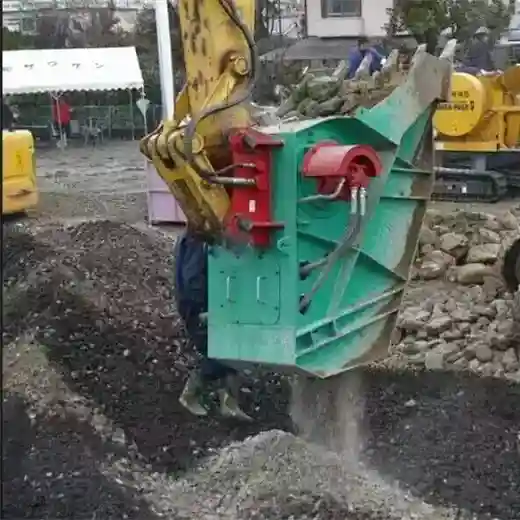

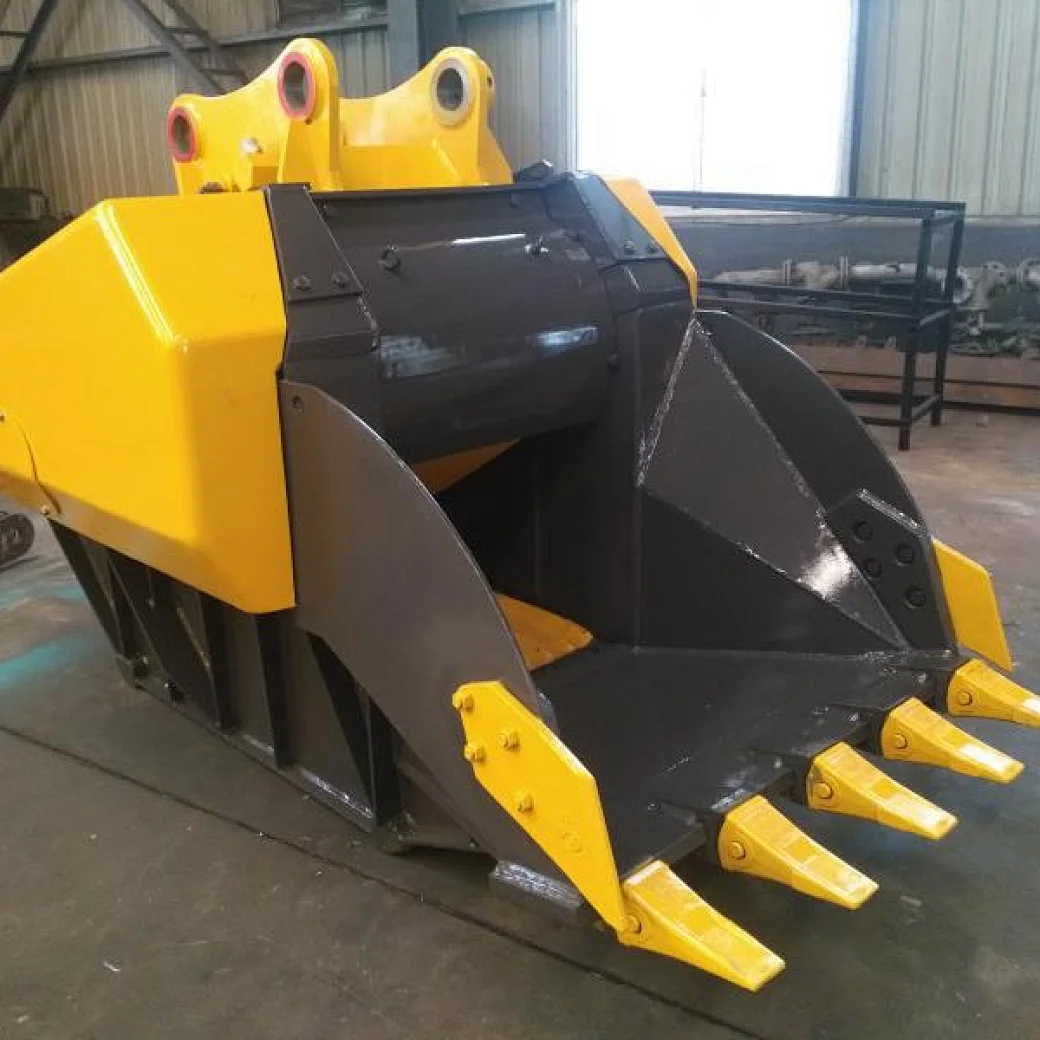

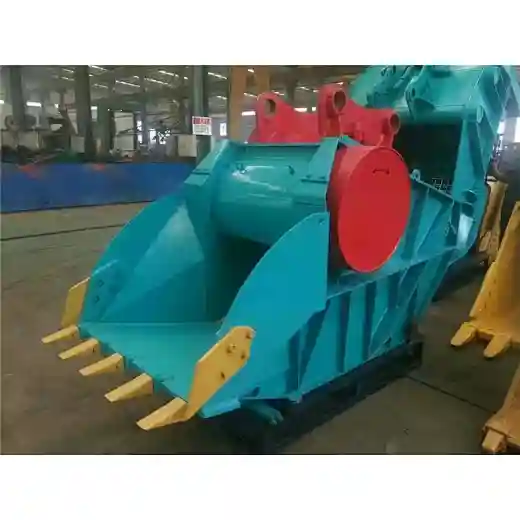

construction machinery 0.75m3 new Crusher bucket for 30 ton excavator
1. Model:CB300
2. Suit for 3-35 t excavator
3. material: Hardox steel plate
4. unit weight:about 3800kgs
5. hold capacity:about 0.75m3
6.Characteristics.:
By reversing the rotation, clogged materials can be easily released. The upper and lower jam plates can be exchanged with each other, and the rear and front sections can also be exchanged. We are using direct drive system which makes maintenance much easier. The reinforcing bars can be easily remove from crushed reinforcement and this product requires drain line.
Model | CB100 | CB200 | CB300 | CB400 |
Suitable excavator ton | 10≈15 | 20≈25 | 30≈35 | 40≈50 |
Bucket Volume (m3) | 0.35 | 0.65 | 0.75 | 1.15 |
Pressure (Mpa) | 24.5 | 24.5 | 24.5 | 24.5 |
oil flow (L/min) | 90 | 150 | 230 | 260 |
Feeding size(mm) | 550*450 | 700*500 | 900*500 | 1100*500 |
Adjustment size(mm) | 1820*1080*1200 | 2246*1380*1440 | 2367*1665*1575 | 2642*2010*1640 |
weight (kg) | 1400 | 2500 | 3800 | 5200 |
1.standard package for crusher bucket
2.customized package for crusher bucket
