rotatory rock saw
Product Description

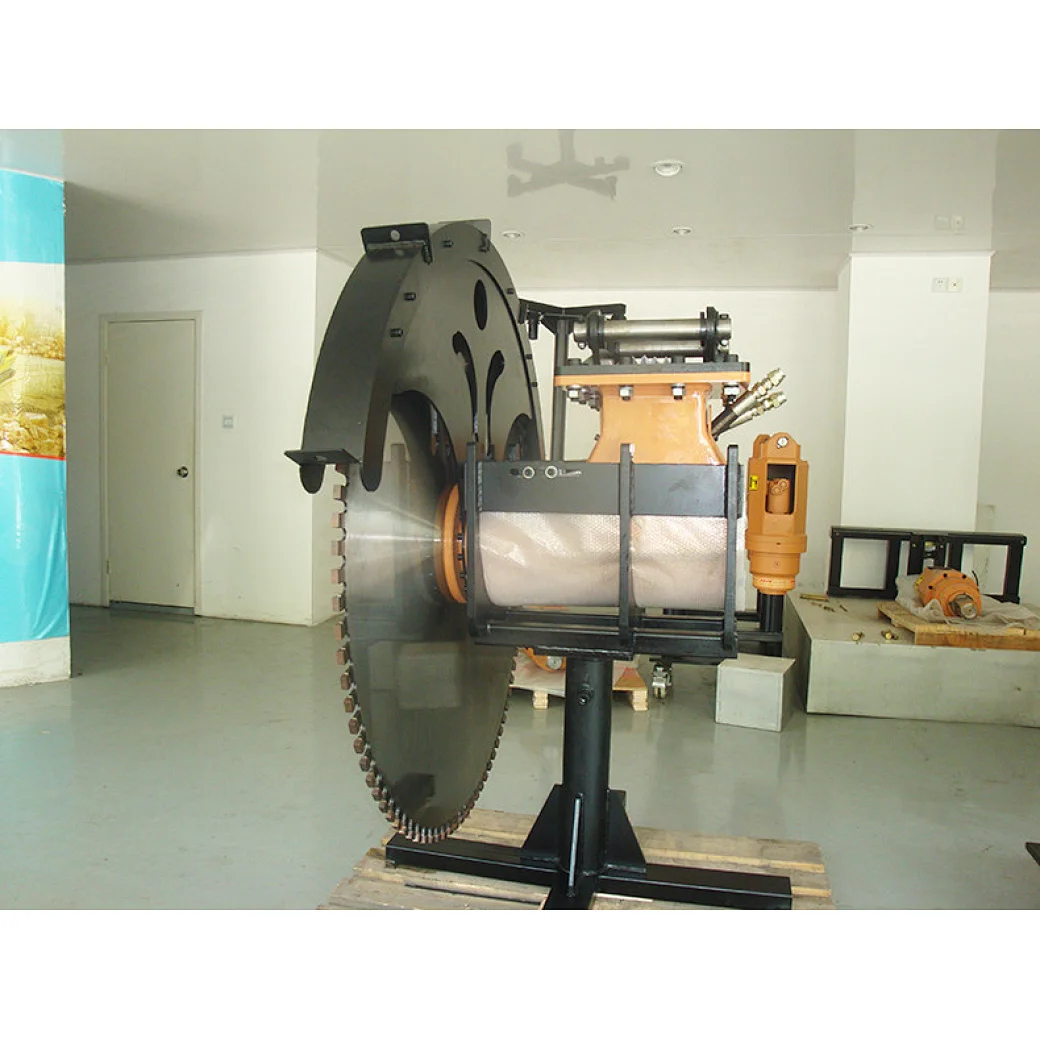

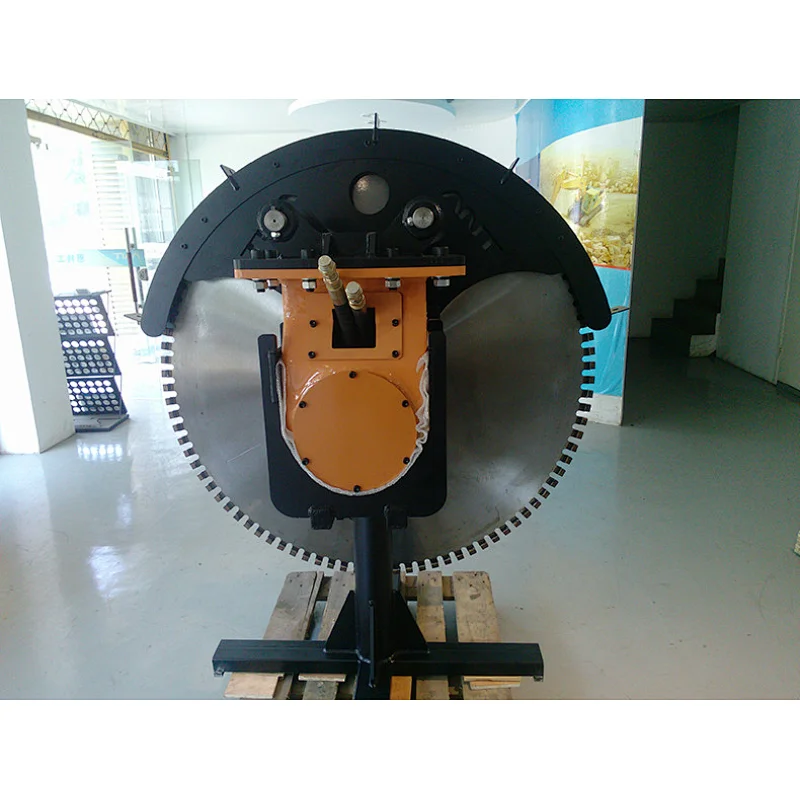

R350 excavator parts granite cutting saw with 2200-3500 mm saw blade
1. model no.: SMB 30RS-2S
2. suit for excavator: 20-45 ton
3. with world class advanced hydraulic technology
4. with world top quality hydraulic motor EATON

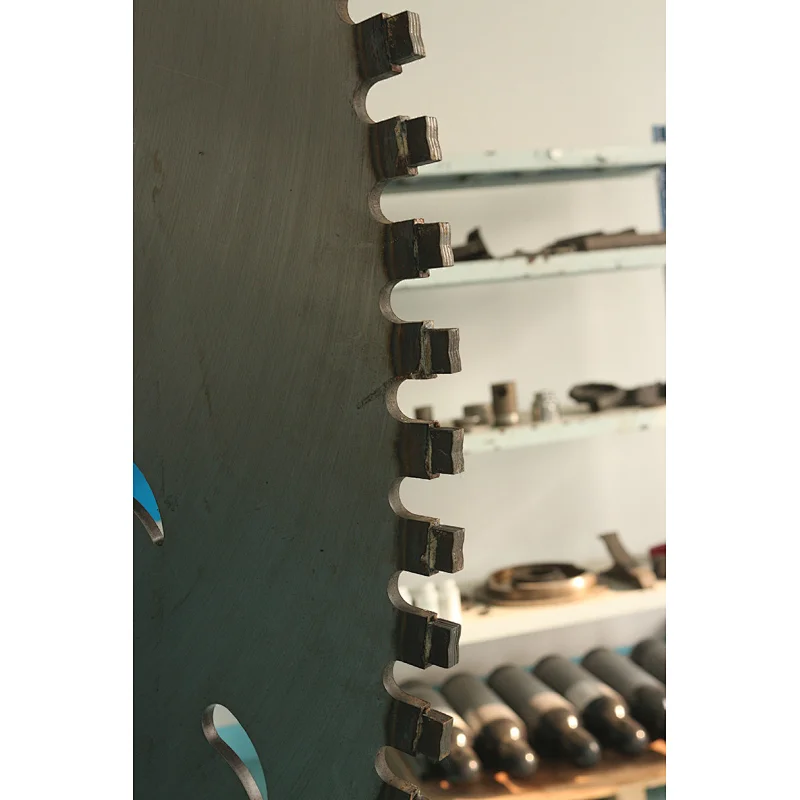

5. saw blades made of high quality spring steel and synthetic diamond
6. characteristics:
A) fast acting automatic brake.
B) reversible blade rotation
C) double swiveling shield
D) a wide range of models to match excavator from 1 to 45tons.

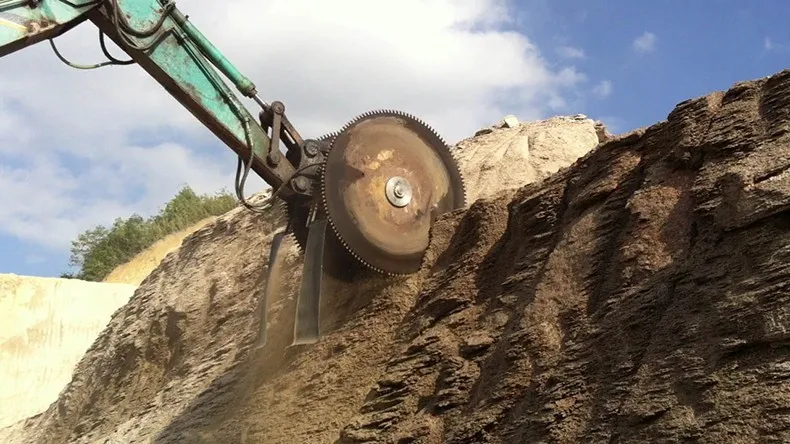

7. applications:
A) excavations for footings, basements
B) tunneling and quarrying
C) construction and maintenance of roads
D) use in hard reach places and populated areas
E) trenches for underground piping and cables
F) mining and quarrying stone, including stone of high hardness(eg, basalt, granite)
G) used in demolition as an alternative or addition to hammers and shears.
working parameter | ||
items | parameters | unit |
max output power | 120 | kw |
max flow | 300 | LPM |
recommended flow | 180-300 | LPM |
max presure | 450 | bar |
output torque | 7763 | Nm@320bar |
output shaft speed | 0-250 | RPM |
unit weight | 1350 | kg |
saw disc.spec. | Φ2200-3500*9.5 | mm |
distance betwwen 2 saw discs | 1 | meter |
1.2 | meter | |
1.4 | meter | |
material for cutting | granite, basalt, steel concrete, marble. limestone | |
Company Information
Main Products
Packaging & Shipping
1. standard package for granite cutting saw;
2. customized package for granite cutting saw.
