- After-sales Service Provided:Online support
- steel trailer ramp Actuation:Hand Hydraulic Pump
- trailer ramp Rated Loading Capacity:6ton Max
- steel trailer ramp Min. Lifting Height:1000mm
- steel trailer ramp Max. Lifting Height:1800mm
- steel trailer ramp Table Size:2200*2000mm
- steel trailer ramp Overall Dimensions:10500*2080*1800mm
- steel trailer ramp Unit Weight:2400kg
- steel trailer ramp Color:Blue
- steel trailer ramp Origin:Made in China
- Condition:New
- Applicable Industries:Hotels
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:Food Shop
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- Applicable Industries:Advertising Company
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Lift Mechanism:Telescoping Lift
- Lift Drive / Actuation:Hydraulic
- Warranty:Unavailable
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:Not Available
- Core Components:Pump
- Place of Origin:CN;SHG
- Brand Name:SMB
- Power:Customizable
- Min. Lifting Height:1000mm
- Table Size:2200*2000mm
- Overall Dimensions:10500*2080*1800mm
- Weight:2400kg
- Certification:CE ISO9001

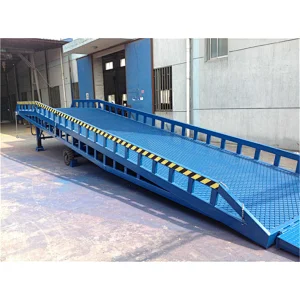

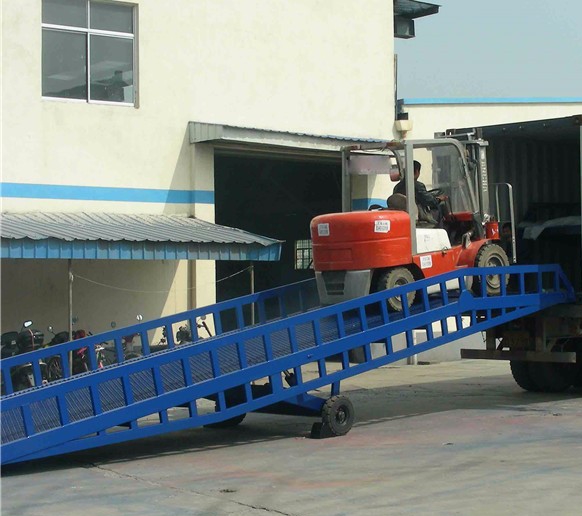

good quality movable hand hydraulic steel trailer ramp with CE

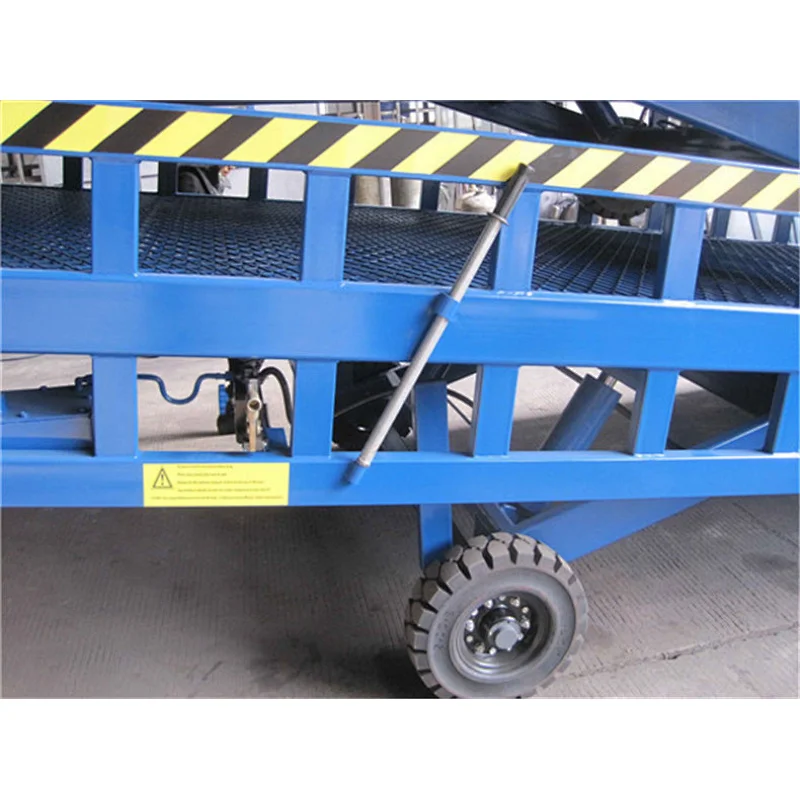

1. Hand hydraulic pump
2. Adjust safety chain

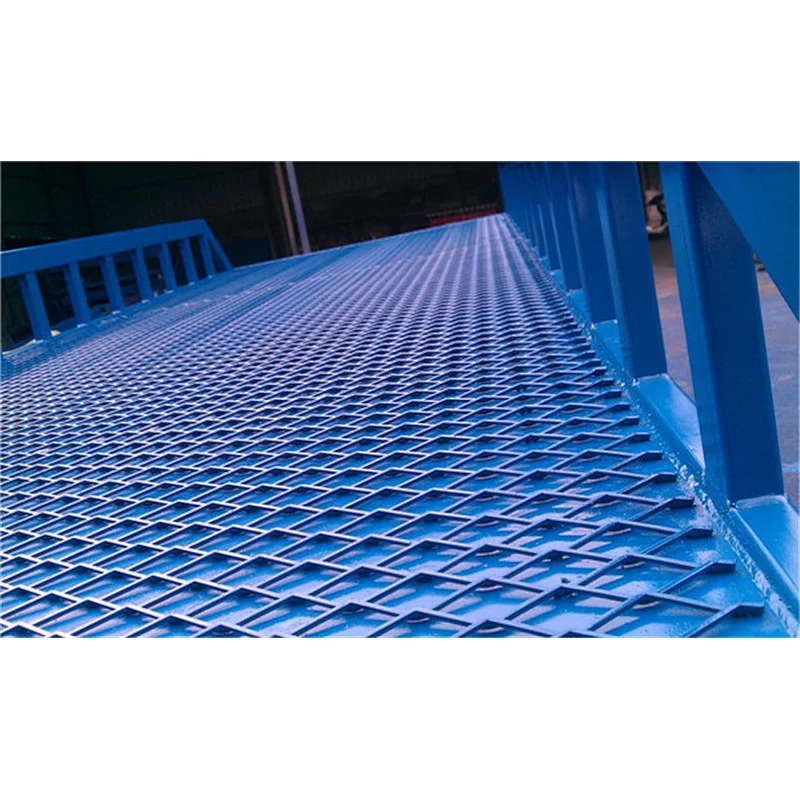

3. Meshwork steel
4. Heavy-duty formed steel side girders
5. Collocateding brake cushion

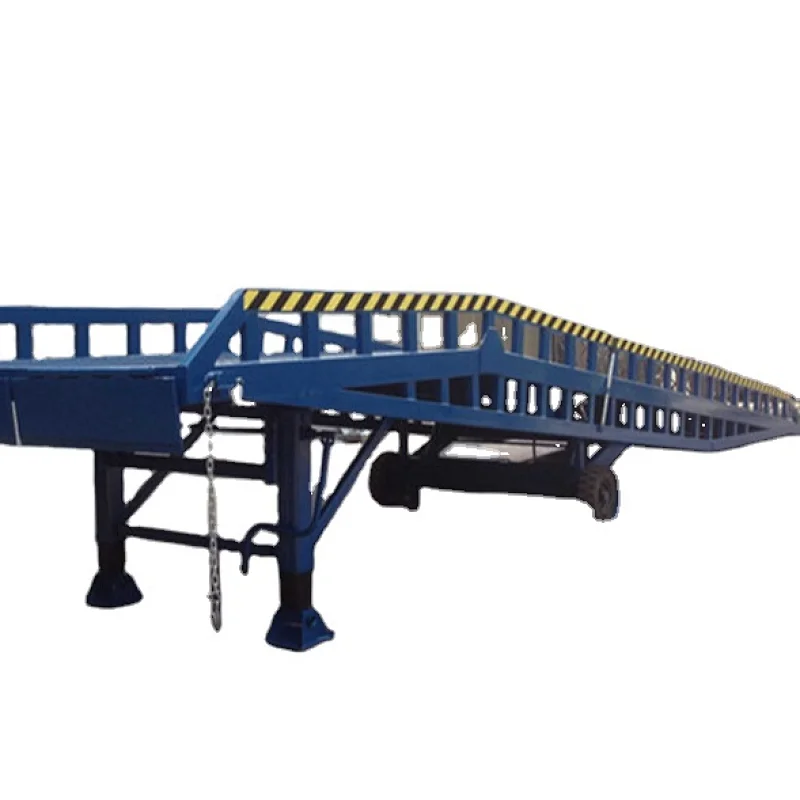

6. With landing leg special supporting loading and unloading in container
7. (Forklift Weight+Cargo Weight)x1.4 Dynamic load coefficient not exceed Platform Load(6T),
Which means the forklift weight add the cargo weight not exceed 4.3T
Model no | Max Load Weight(mts) | PLATFORM SIZE (mm) | WORKING HEIGHT (mm) | support legs | ||||||||
A | B | C | D | E | F | G | H(MIN) | I | J (MAX.) | |||
DCQ 6-0.8 | 6 | 7000 | 2200 | 1000 | 300 | 10500 | 2000 | 2080 | 1000 | 800 | 1800 | no |
DCQ 8-0.8 | 8 | 7000 | 2200 | 1000 | 300 | 10500 | 2000 | 2100 | 1000 | 800 | 1800 | no |
DCQ 10-0.8 | 10 | 7500 | 2400 | 1000 | 300 | 11200 | 2000 | 2100 | 1000 | 800 | 1800 | no |
DCQY 6-0.5 | 6 | 7000 | 2200 | 1000 | 300 | 10500 | 2000 | 2080 | 1200 | 500 | 1700 | with |
DCQY 8-0.5 | 8 | 7000 | 2200 | 1000 | 300 | 10500 | 2000 | 2100 | 1200 | 500 | 1700 | with |
DCQY 10-0.5 | 10 | 7500 | 2400 | 1000 | 300 | 11200 | 2000 | 2100 | 1200 | 500 | 1700 | with |
