- Place of Origin:CN;SHG
- Warranty:1 YEAR
- After-sales Service Provided:Online support
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Retail
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Brand Name:Shanghai SMB
- Weight:1500kgs
- Suitable Excavator(ton):12-21

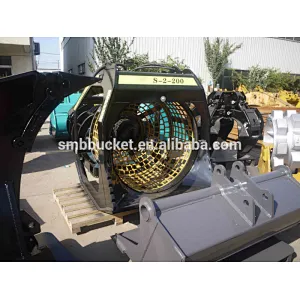

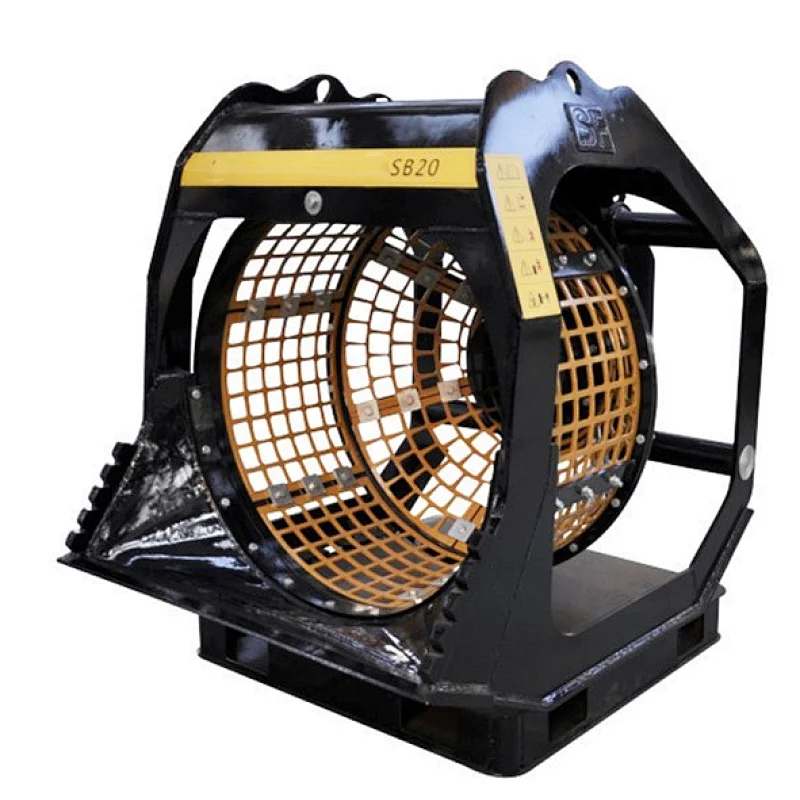

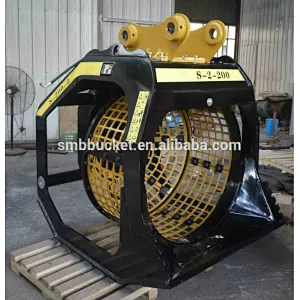

- name:hydraulic rotary screen bucket for 12-21 ton excavator
- Type:screen bucket
- Capacity:1.3m3
- size(mm):1890*1280*1550
- deepth:1125mm
- Screen diameter:1150mm
- Unit Weight:about 1500kgs
- Work pressure:10-20mpa
- System flow:40-80l/min
- origin:made in China
2. screen bucket weight:1500kgs
3. screen bucket volume:1.3m3
4.Screen hole diameter:30-70
5. screen bucket System flow:40-80 l/min
6.Our main markets are Ecuador, America, Panama, Russia, Australia, New-Zealand, Thailand, Singapore etc
7.customized screen bucket made in China
tonne | t | 5-8 | 8-12 | 12-21 | 20-30 | 31-40 |
weight | kg | 600 | 1000 | 1500 | 1800 | 2200 |
volume | M3 | 0.3 | 0.7 | 1.3 | 1.7 | 2.0 |
length | mm | 1080 | 1530 | 1890 | 2550 | 3070 |
width | mm | 695 | 1040 | 1280 | 1730 | 2090 |
height | mm | 860 | 1260 | 1550 | 2090 | 2520 |
mm | 580 | 920 | 1125 | 1520 | 1830 | |
Screen diameter | mm | 600 | 900 | 1150 | 1500 | 1900 |
Screen hole diameter | mm | 20-60 | 30-60 | 30-70 | 40-80 | 40-90 |
Work pressure | Mpa | 10-17 | 10-20 | 10-20 | 16-22 | 16-22 |
Rotate speed | R pm | 1-64 | 1-55 | 1-40 | 1-29 | 1-15 |
l/min | 30-50 | 30-50 | 40-80 | 40-80 | 40-80 |
7.customized screen bucket made in China
1. one 20GP can load about 12-14 pieces 0.3m3 to0.7m3 buckets for 5-12 ton excavator;
2. one 40HC can load about 26-28 pieces 1.3 m3 buckets for 12-21ton excavator;
3. one 20GP can load about 8 pieces 1.7m3 buckets for 20-30ton excavator;
4. one 40HC can load about 16 pieces 2.0m3 buckets for 31-40 ton excavator.
