- After Warranty Service:Online support
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Local Service Location:None
- Showroom Location:None
- Condition:New
- Warranty:1 year
- After-sales Service Provided:Online support
- UNIQUE SELLING POINT:High operating efficiency

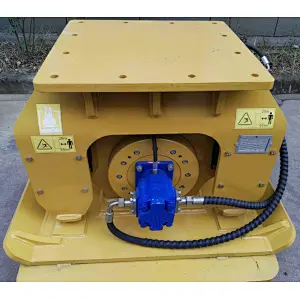

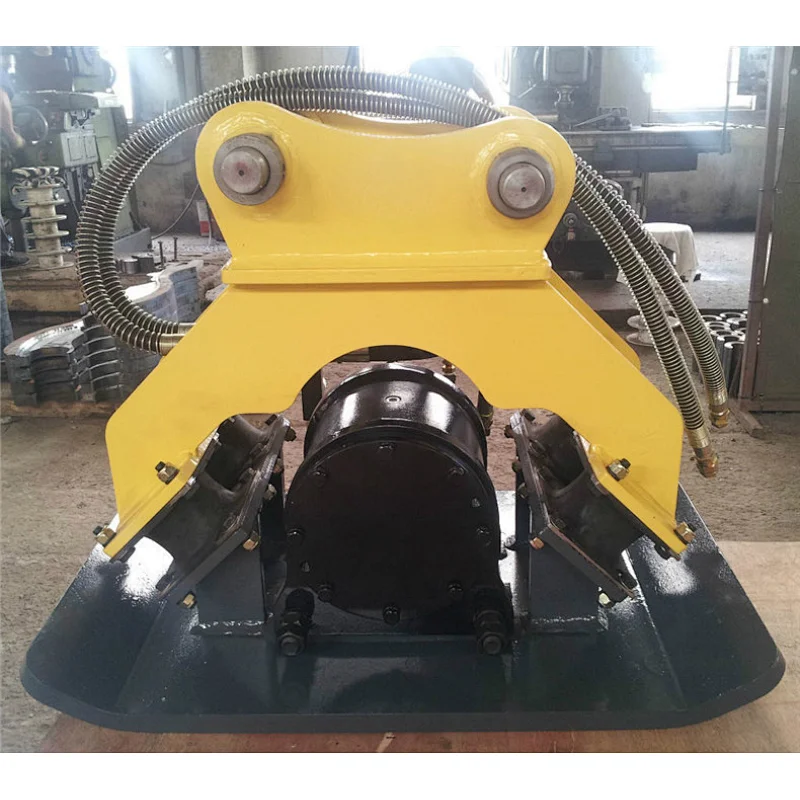

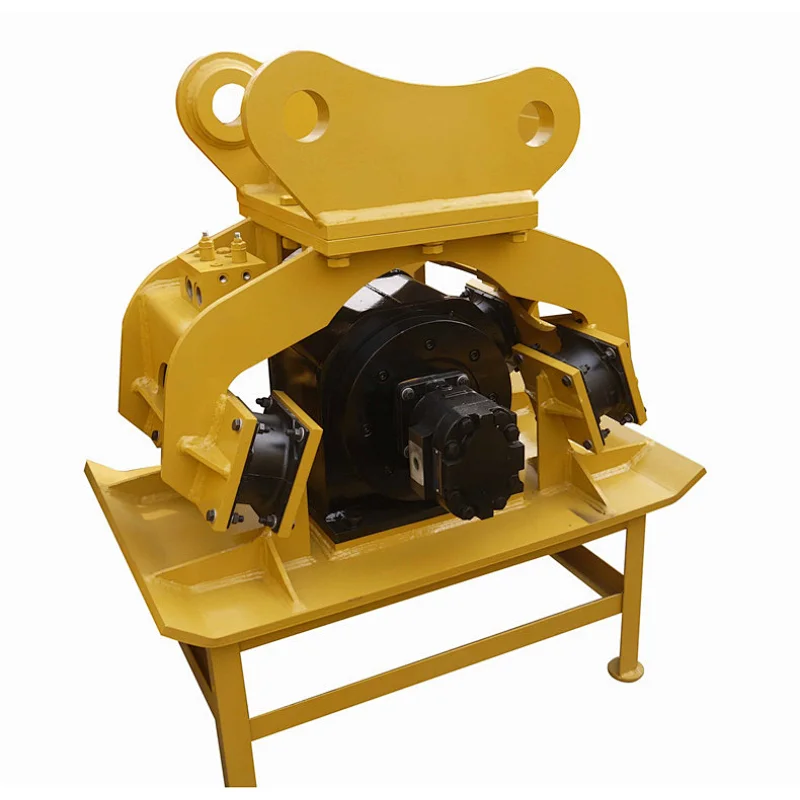

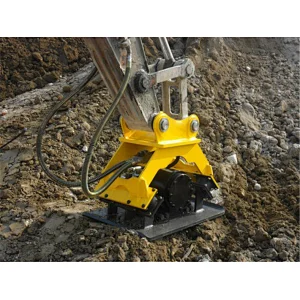

1.Type: excavator plate compactor
2.material: Q345B+NM400orcustomized
3.Package: wooden pallet
4.Origin: made in China
5.Customized are our specialty
6.Our main markets are Ecuador, America, Panama,Russia,Australia,NewZealand, Thailand, Singapore etc
7. made in China
Model | SMBP050 | SMBP100 | SMB200 | SMBP300 |
Excavator Ton (ton) | 6 | 10 | 20 | 30 |
Exciting Force(kn) | 48 | 88 | 116 | 256 |
Vibrating Frequency (times/min ) | 2600 | 2600 | 2600 | 200 |
Weight (kg) | 460 | 530 | 673 | 790 |
Size of the plate (mm) | 760*520 | 820*600 | 1145*770 | 1420*1040 |
1. one 20GP can load about 12-14 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator;
2. one 40HC can load about 26-28 pieces 1.0m3 or 1.2m3 buckets for 20ton excavator;
3. one 20GP can load about 8 pieces 1.6m3 buckets for 30ton excavator;
4. one 40HC can load about 16 pieces 1.6m3 buckets for 30ton excavator.
