China delicate mini track excavator
- Applicable Industries:Building Material Shops
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Construction works
- Condition:New
- Place of Origin:CN;SHG
- Type:Skid Steer Loader
- Moving Type:Crawler Loader
- Warranty:1 year
- After-sales Service Provided:Online support
- Hydraulic Pump Brand:Huade
- Engine Brand:AEOLUS
- UNIQUE SELLING POINT:High load Moment
- Brand Name:Shanghai SMB
- Dimension(Long * Breadth * High):1877*896*1990mm
- Certification:CE
- Machine Weight:800kgs
- Power(W):2200
- Bucket capacity:0.025m3
China delicate mini wheel excavator widely used in various industry sectors with CE certificate on hot sales
1.Operating Weight:800kg
2. mini excavator engine .:CHANGCHAI
3. mini excavator Rated power:8.6 kw/1800r/min
4. mini excavatorcertification: CE Approved
5.Our main markets are Ecuador, America, Panama,Russia,Australia,New zeland, Thailand, Singapore etc
6. delicate mini excavator widely used in various industry sectors with CE certificate on hot sales

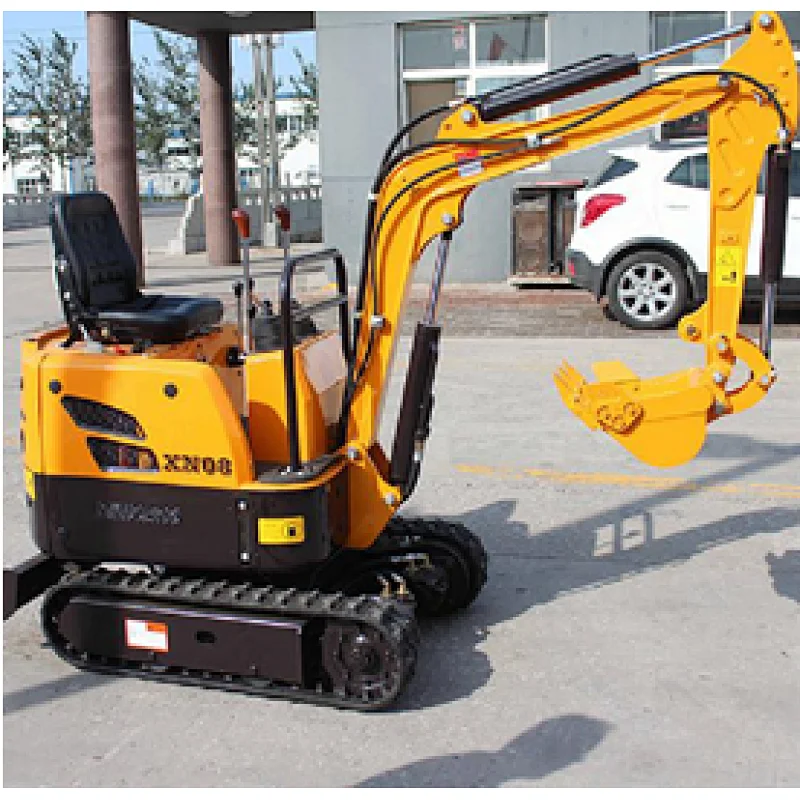

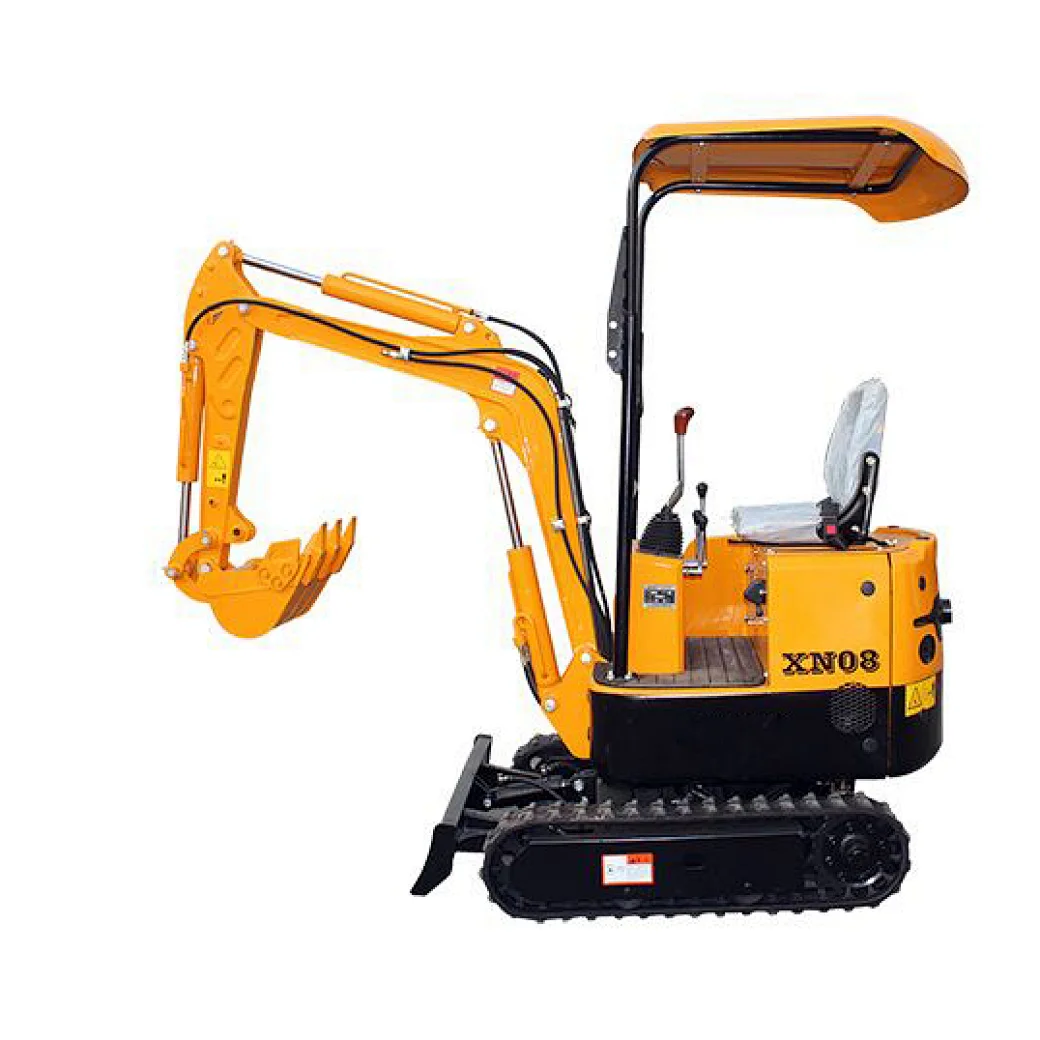

Model | XN08 | |
800kg | ||
Digging bucket capacity | 0.025cbm/100kg | |
Bucket width | 340mm | |
Engine | KOOP / CHANGCHAI | |
Rated power | 8.6 kw/1800r/min | |
Displacement | 0.499 L | |
Bore stroke | 70x55 | |
Main pump | CBK-F6.8 | |
Displacement | 6.8ml/r | |
Swing motor | SJ-TECH (MP-1-160) | |
Traveling motor | KERSEN 310 | |
Travel speed | 1.5km/h | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 1877x896x1990 mm | |
Wheelbase | 770 mm | |
Total length of track | 960mm | |
Platform ground clearance | 376 mm | |
Platform back turning radius | 664 mm | |
Chassis width | 896 mm | |
Track width | 180 mm |
Chassis ground clearance | 132 mm | ||
Track height | 320 mm | ||
OPERATING RANGE | |||
Max. Digging depth | 1650 mm | ||
Max. Vertical digging depth | 1376 mm | ||
Max. Digging height | 2365 mm | ||
Max. Dumping height | 1655 mm | ||
Max. Digging radius on ground | 2560 mm | ||
Min. Rotation radius | 1200 mm | ||
Max. Upgrade height of bulldozer blade | 165 mm | ||
Max. Digging depth of bulldozer blade | 170 mm |

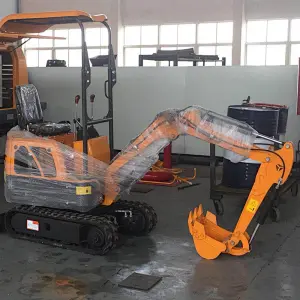

1. seaworthy export standard package,with wooden or steel pallet,wooden carton,steel frame etc for Mini Loader with CE certificate;
2. one 20GP can load about 6 pieces for Mini Loader with CE certificate;
3. one 40GP can load about 20pieces for Mini Loader with CE certificate;
4. customized package for Mini Loader with CE certificate.
