- Place of Origin:CN;ZHE
- Brand Name:Shanghai SMB
- Model Number:SMB AA-2G

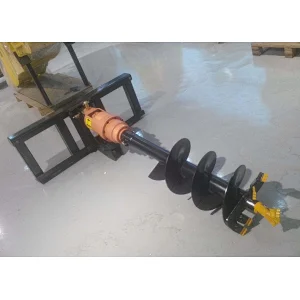

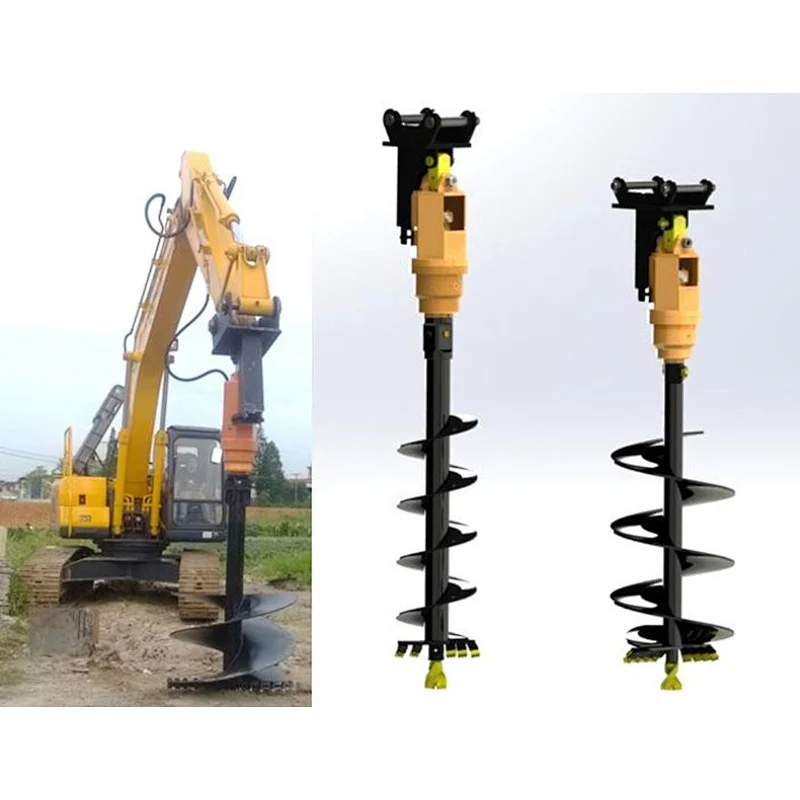

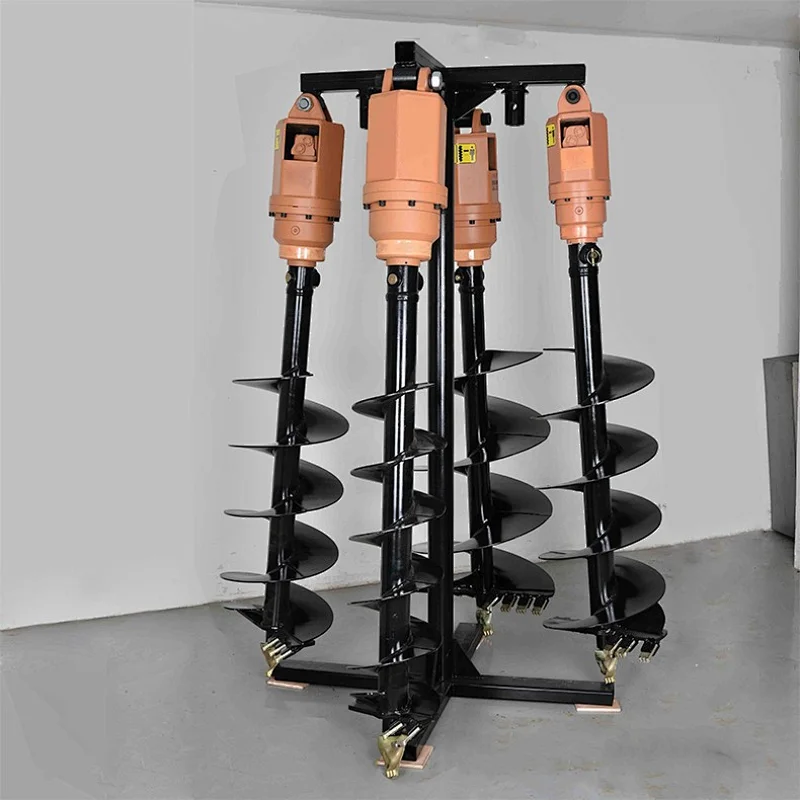

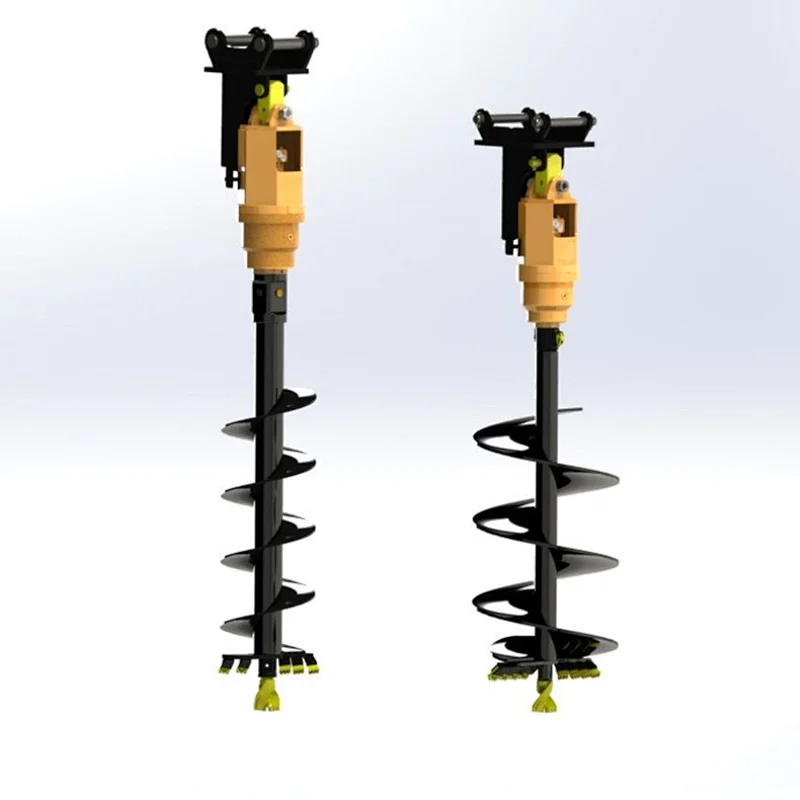

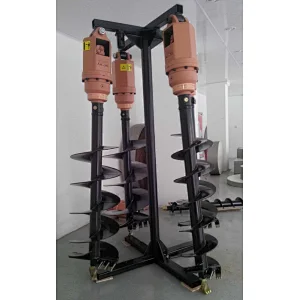

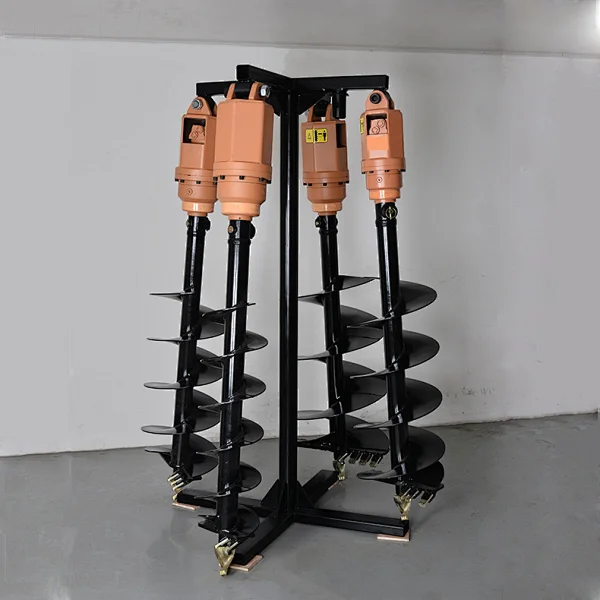

industry construction parts small auger drill for mini skid steer loader
1.earth drill model no.:AA-2G
2. motor: motor imported USA with EATON brand
3.suit for excavator and skid steer loader:1.5-3ton
4.drilling diam.range:100-500mm
5. application: hole drilling for landscaping, planting, mining, bridge construction etc
6. our main markets are Ecuador, America, Panama,Russia,Australia,New-zeland, Thailand, Singapore etc
7. industry construction parts small auger drill for mini skid steer loader made in China
AA-2G Earth Drill working parameter | ||||||
auger driver | earth auger and extensions | |||||
items | parameters | unit | diam.(mm) | drilling depth(mm) | ||
torque | 800-2900 | N*m | soft | medium | hard | |
oil pressure | 70-240 | Bar | 100 | 3.5 | 3.5 | 3.0 |
oil flow | 27-65 | LPM | 150 | 3.5 | 3.5 | 3.0 |
speed | 35-88 | RPM | 200 | 3.0 | 3.0 | 3.0 |
unit weight | 51 | Kg | 250 | 2.5 | 2.4 | 2.2 |
unit height | 600 | mm | 300 | 2.5 | 2.4 | 2.2 |
hydraulic hose | 1/2"BSP | 350 | 2.4 | 2.2 | 2.0 | |
output shaft standard | 65mm round | 400 | 2.0 | 1.8 | 1.5 | |
2"hex | 450 | 1.7 | 1.6 | 1.5 | ||
57mm square | 500 | 1.5 | 1.4 | 1.3 | ||
1. standard packaging for small auger drill;
2. customized package for small auger drill.
