- After Warranty Service:Online support
- Local Service Location:None
- Showroom Location:None
- Place of Origin:CN;SHG
- Warranty:1 year
- After-sales Service Provided:Online support
- Brand Name:Shanghai SMB
- Applicable Industries:construction
- Suitable Excavator(ton):10
Product Description

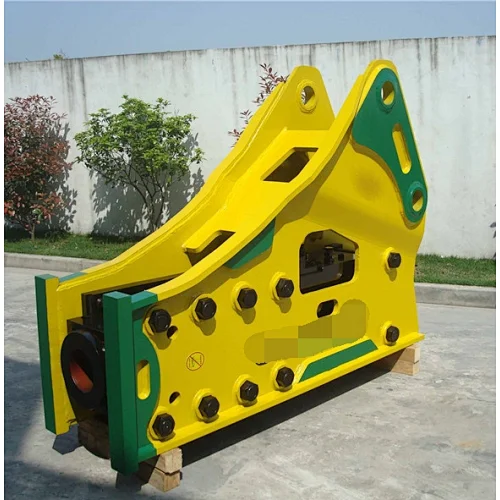

construction machinery tools big hydraulic breaker silent type for city project
1. model/number: SMB S175
2. suit for excavator: 40.0-55.0T
3. type: box type
4. tool diameter: 175mm
5. design with cushion rubber for shock absorption
6. lower noise for city projects,comfortable operation
7. longer operation range for distance working
8. chisel sliding design for longer service life, reducing maintenance cost.
| Model/description | Unit | S175 |
| Tool Diameter | mm | 175 |
| inch | 7.0 | |
| Weight of Main Body | kg | 1536 |
| lbs | 3380 | |
| Operating Weight (Connector & Chisel) | kg | 3991 |
| lbs | 7982 | |
| Impact Rate | bpm | 200~350 |
| Operating Pressure | psi | 2320~2610 |
| bar | 160~180 | |
| Required Oil Flow | l/min | 210~290 |
| gal/min | 50~65 | |
| Hose Diameter | inch | 1 1/4 |
Company Information
Main Products
Packaging & Shipping
1. export seaworthy standard packing for big hydraulic breaker;
2. customized package for big hydraulic breaker.
