- Place of Origin:CN;SHG
- Warranty:1 YEAR
- After-sales Service Provided:Online support
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Retail
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Brand Name:Shanghai SMB Bucket
- Model Number:SMB CB200
- Weight:2500 kgs
- Suitable Excavator(ton):20-25
- Name:SMB CB200 new clamshell bucket
- new crusher bucket Suit for:20-25t excavator
- new crusher bucket material:Hardox steel plate
- new crusher bucket unit weight:about 2500kgs
- new crusher bucket hold capacity:0.65m3
- new crusher bucket Pressure (Mpa):24.5
- new crusher bucket oil flow (L/min):150
- new crusher bucket Feeding size(mm):700*500
- new crusher bucket Adjustment size(mm):2246*1380*1440
- standard bucket origin:made in China

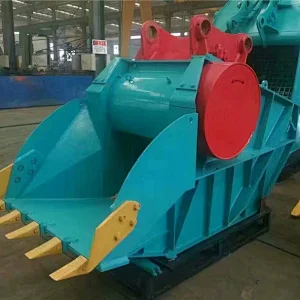

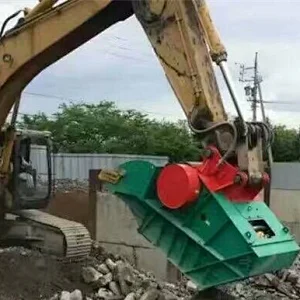

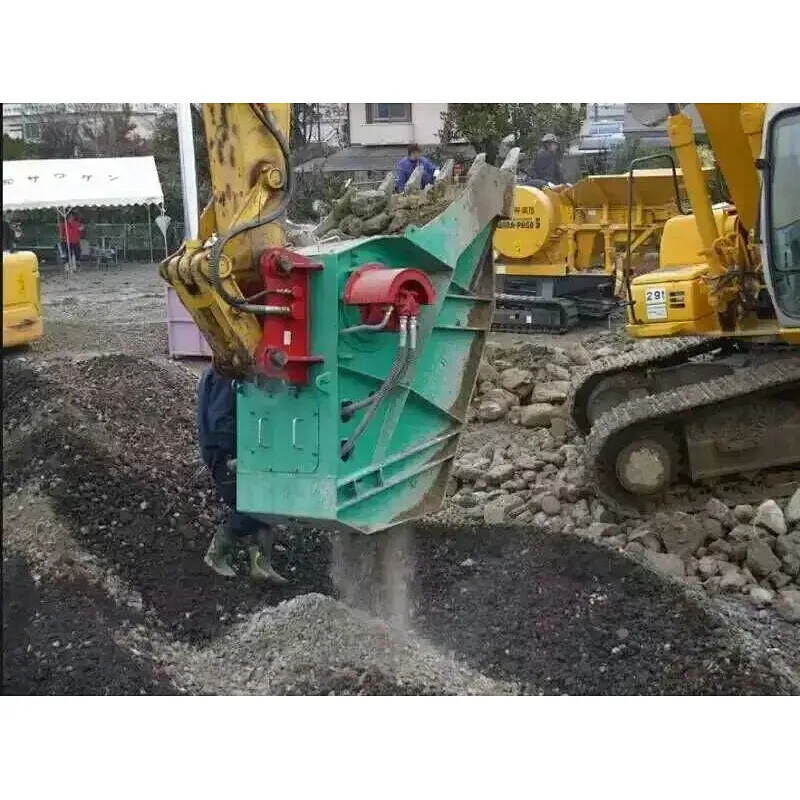

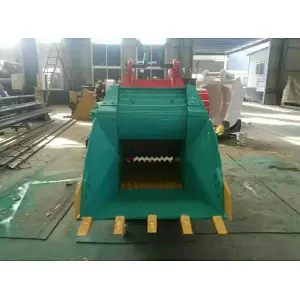

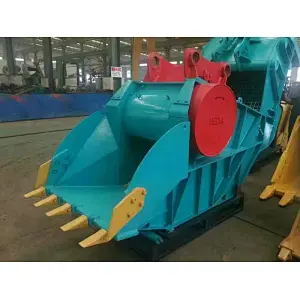

Shanghai SMB construction attachement heavy duty type crusher bucket for 20-25 ton excavator
1. Model:CB100
2. Suit for 20-25t excavator
3. material: Hardox steel plate
4. unit weight:about 2500kgs
5. hold capacity:about 0.65m3
6.Characteristics.:
By reversing the rotation, clogged materials can be easily released. The upper and lower jam plates can be exchanged with each other, and the rear and front sections can also be exchanged. We are using direct drive system which makes maintenance much easier. The reinforcing bars can be easily remove from crushed reinforcement and this product requires drain line.
Model | CB100 | CB200 | CB300 | CB400 |
Suitable excavator ton | 10≈15 | 20≈25 | 30≈35 | 40≈50 |
Bucket Volume (m3) | 0.35 | 0.65 | 0.75 | 1.15 |
Pressure (Mpa) | 24.5 | 24.5 | 24.5 | 24.5 |
oil flow (L/min) | 90 | 150 | 230 | 260 |
Feeding size(mm) | 550*450 | 700*500 | 900*500 | 1100*500 |
Adjustment size(mm) | 1820*1080*1200 | 2246*1380*1440 | 2367*1665*1575 | 2642*2010*1640 |
weight (kg) | 1400 | 2500 | 3800 | 5200 |
1.standard package for crusher bucket
2.customized package for crusher bucket
