- Place of Origin:CN;SHG
- After-sales Service Provided:No overseas service provided
- Use:trenching
- Model Number:030518
- Brand Name:Shanghai SMB
- Type:attachment
- Certification:ISO
- Condition:New

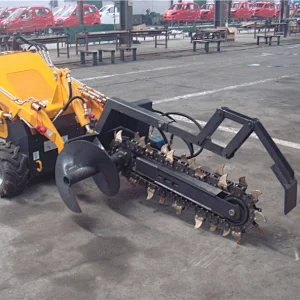

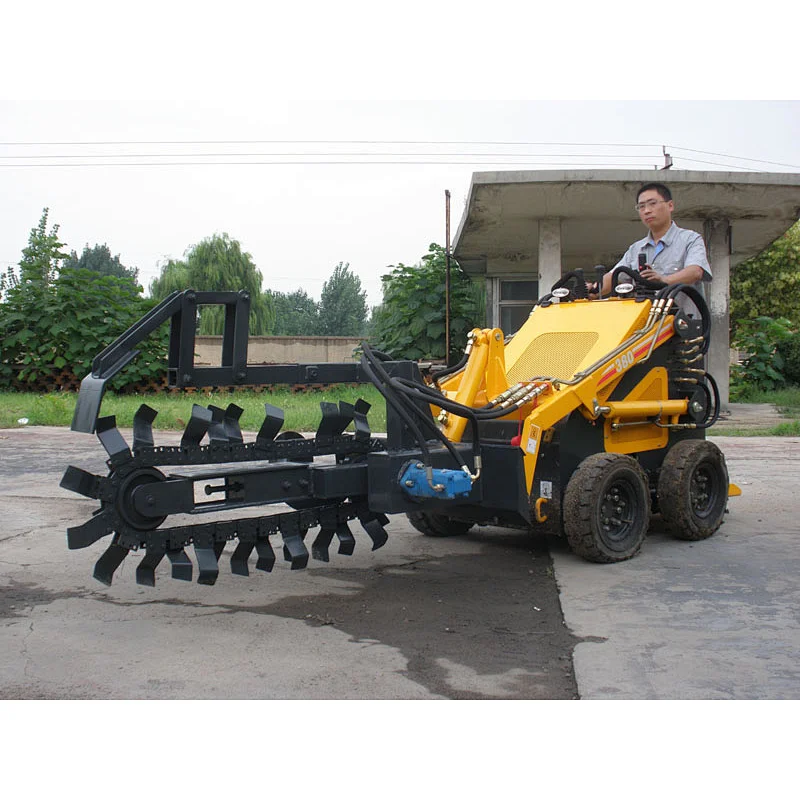

China factory trenching assembly wheel trencher tractor sales
1. Model no.: 030518
2.Type:wheeltrencher
3.Application: Suitablefor working in soil to cut straight trenches to lay water pipe, communications optical cable, electrical lines, irrigation canal, gas pipe.
4.Suit for machines:Skid steer loaders,small excavators,backhoe loaders,small wheel loaders, etc
5. Our main markets are Ecuador, America, Panama, Russia, Australia, New -Zealand, Thailand, Singapore etc
6. China factory trenching assembly wheel trencher tractor sales
Model no. | 030518 | 030524 | |
Overall width (mm) | 1700 | 1700 | |
Overall height (mm) | 2006 | 2057 | |
Overall length (mm) | 1930 | 2184 | |
Digging width (mm) | 63-102 | 63-102 | |
Max cutting depth (mm) | 457 | 609 | |
Wheel diameter (mm) | 1219 | 1524 | |
Number of Picks | 42 | 56 | |
Flow range (L/min) | 120-140 | 130-160 | |
Pressure (Mpa) | 14-22 | 14-22 | |
Operating weight (kg) | Wheel width 63mm | 900 | 1050 |
Wheel width 102mm | 960 | 1150 | |
1. standard packing for trencher tractor sales;
2. customized packing for trencher tractor sales.
