- Applicable Industries:Construction works
- Place of Origin:CN;JIA
- Warranty:1 year
- After-sales Service Provided:Online support
- Brand Name:Shanghai SMB

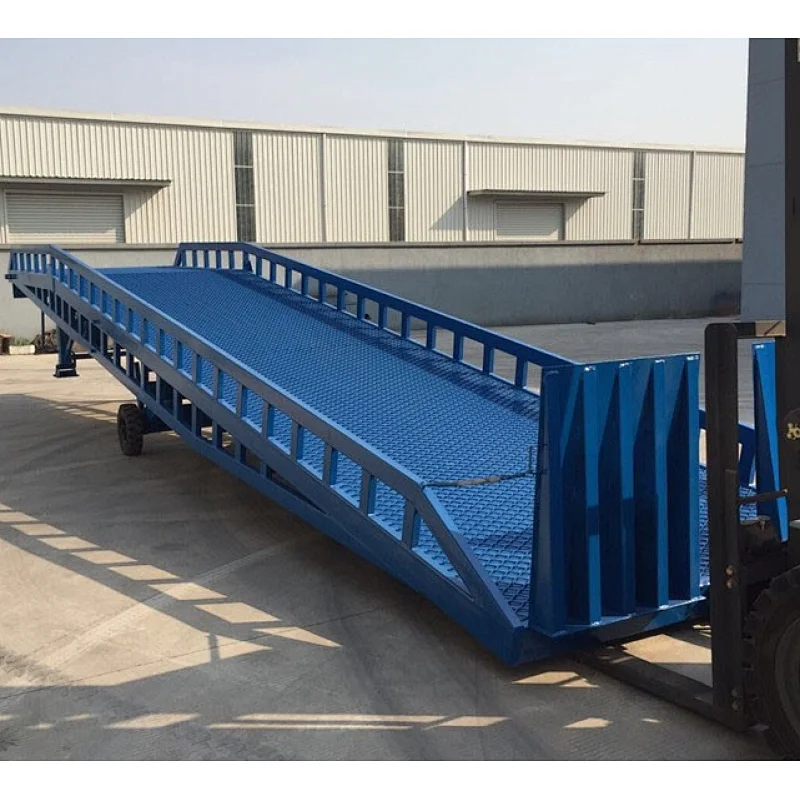

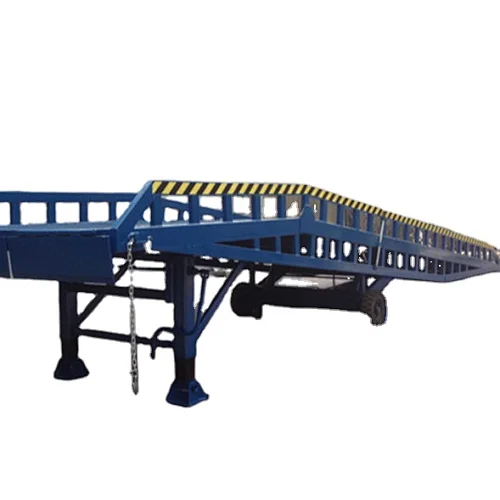

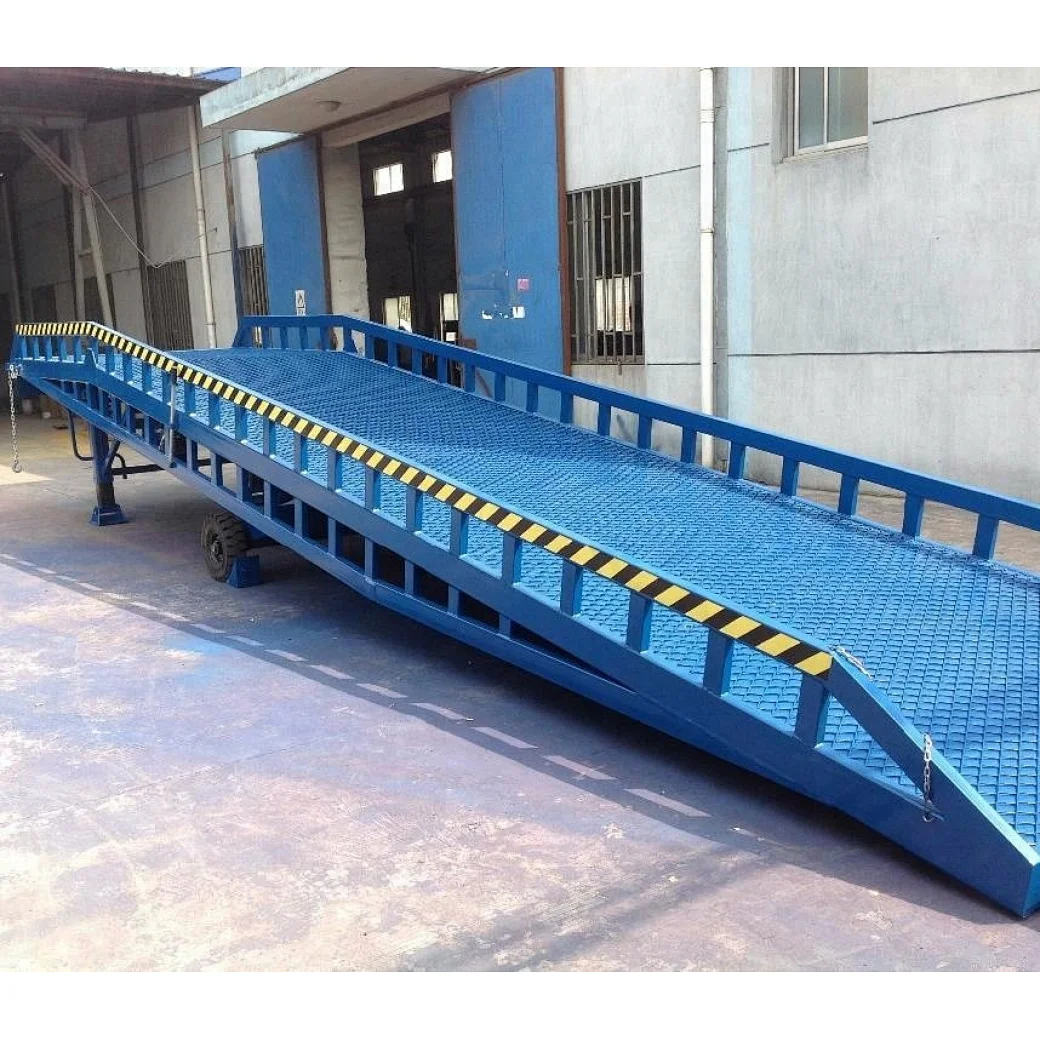

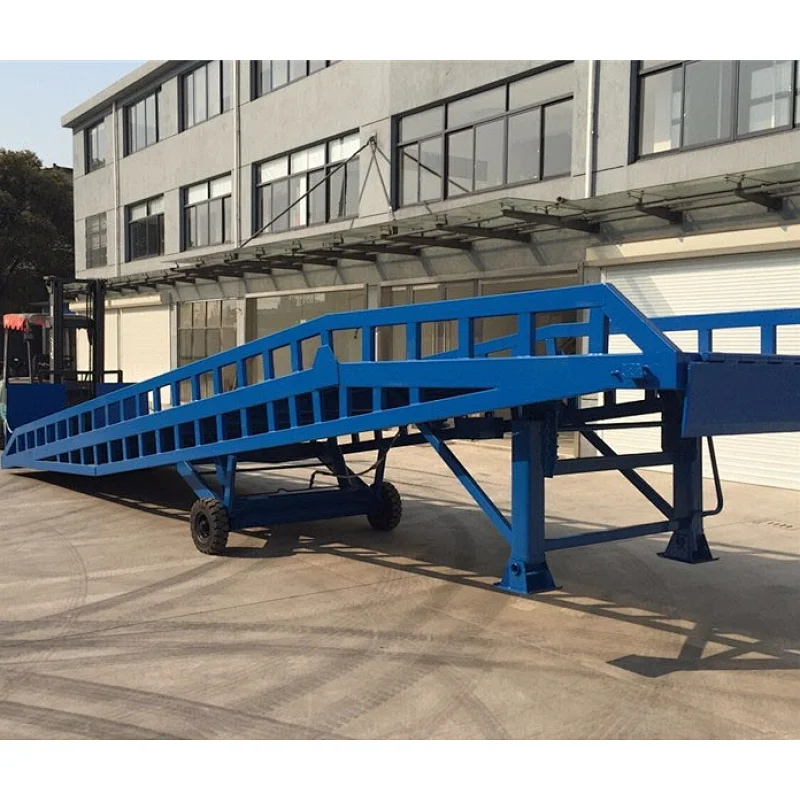

Alibaba China high quality hot sell forklift loading ramps
1.Hand hydraulic pump
2. Adjust safety chain

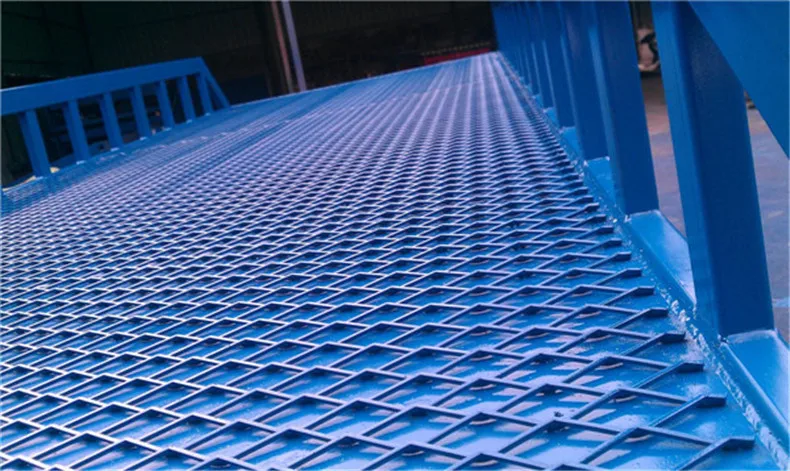

3. Meshwork steel
4. Heavy-duty formed steel side girders
5. Collocateding brake cushion

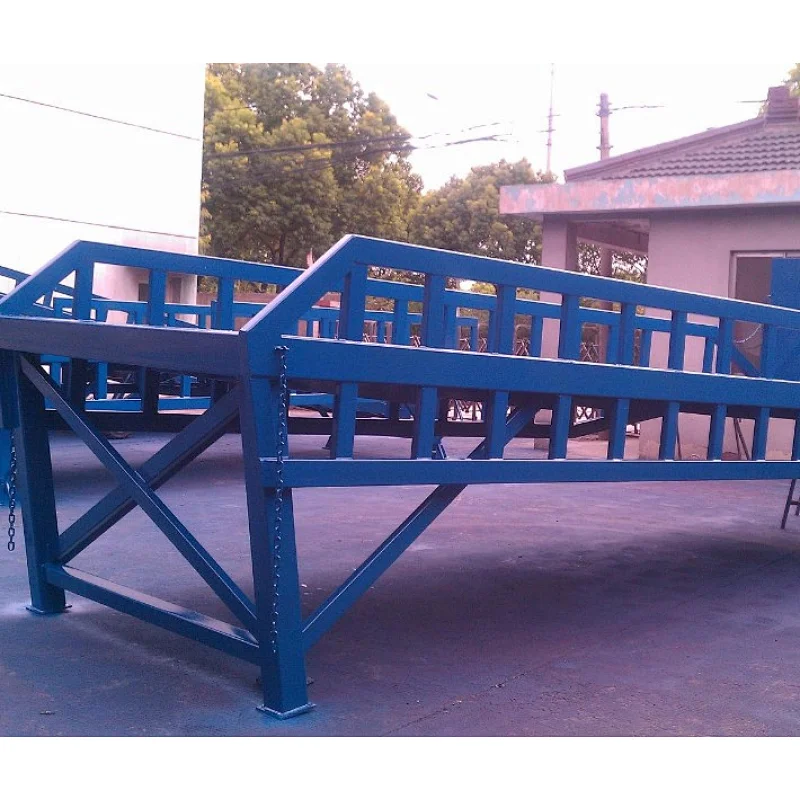

6. With landing leg special supporting loading and unloading in container
7. (Forklift Weight+Cargo Weight)x1.4 Dynamic load coefficient not exceed Platform Load(6T),
Which means the forklift weight add the cargo weight not exceed 4.3mts
8. Usually one 40HQ can load two sets 6T ramps
9.Alibaba China high quality hot sell forklift loading ramps made in China
Model no | Max Load Weight(mts) | PLATFORM SIZE (mm) | WORKING HEIGHT (mm) | support legs | ||||||||
A | B | C | D | E | F | G | H(MIN) | I | J (MAX.) | |||
DCQY 6-0.8 | 6 | 7000 | 2200 | 1000 | 300 | 10500 | 2000 | 2080 | 1000 | 800 | 1800 | no |
DCQY 8-0.8 | 8 | 7000 | 2200 | 1000 | 300 | 10500 | 2000 | 2100 | 1000 | 800 | 1800 | no |
DCQY 10-0.8 | 10 | 7500 | 2400 | 1000 | 300 | 11200 | 2000 | 2100 | 1000 | 800 | 1800 | no |
DCQY 6-0.5 | 6 | 7000 | 2200 | 1000 | 300 | 10500 | 2000 | 2080 | 1200 | 500 | 1700 | with |
DCQY 8-0.5 | 8 | 7000 | 2200 | 1000 | 300 | 10500 | 2000 | 2100 | 1200 | 500 | 1700 | with |
DCQY 10-0.5 | 10 | 7500 | 2400 | 1000 | 300 | 11200 | 2000 | 2100 | 1200 | 500 | 1700 | with |
