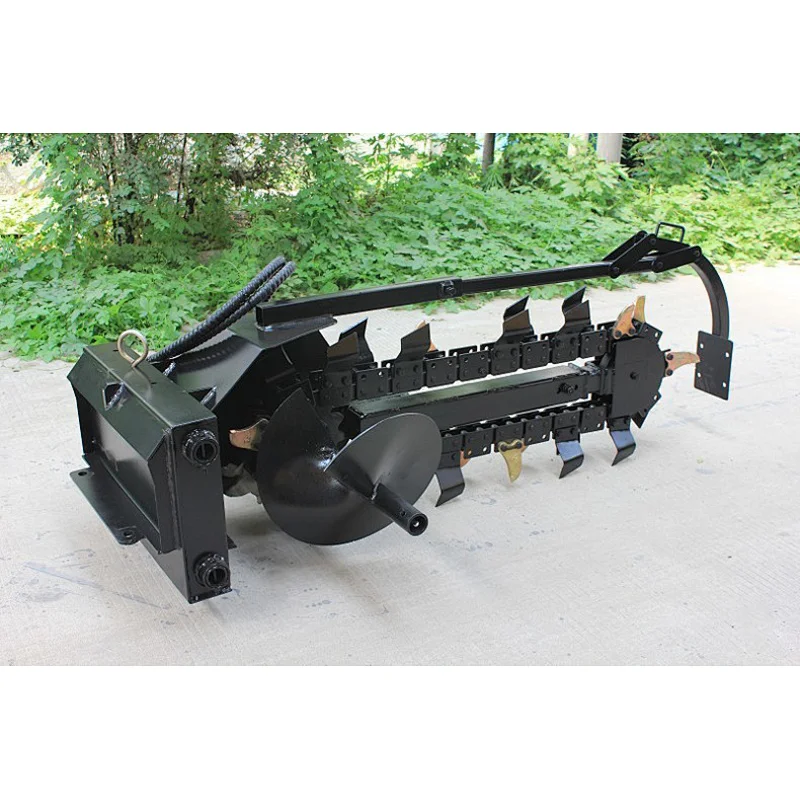

agricultural equipment popular selling Skid Steer Mounted Chain Trencher
1.Model no.: 020730
2.Type: Chain trencher
3.Application: Suitablefor working in soil to cut straight trenches to lay water pipe, communications optical cable, electrical lines, irrigation canal, gas pipe.
4.Suit for machines:Skid steer loaders,small excavators,backhoe loaders,small wheel loaders, etc
5. Features: Compact structure, small size, light weight, easy to transport, low cost, high efficiency, reliable working etc
6.Our main markets are Ecuador, America, Panama, Russia, Australia, New -Zealand, Thailand, Singapore etc
7.agricultural equipment popular selling Skid Steer Mounted Chain Trenchermade in China
Model no. | 020724 | 020730 | 020736 | 020738 |
@65°trenching depth | 600 | 760 | 915 | 1220 |
Overall length (mm) | 1632 | 1784 | 1840 | 2292 |
Overall height (mm) | 720 | 720 | 682 | 720 |
Overall width (mm) | 1350 | 1350 | 706 | 1350 |
Trenching width (mm) | 150 | 150 | 150 | 115 |
Trenching angle (°) | 65° | 65° | 65° | 65° |
Dischargedistance (mm) | 600 | 600 | 600 | 600 |
Flow range (L/min) | 80-110 | 80-110 | 45-80 | 80-110 |
Pressure range (Mpa) | 14-22 | 14-22 | 16 | 14-22 |
Operating weight (kg) | 459 | 502 | 177 | 590 |
